Rectangle (gm-rectangle)

In addition to polylines, polygons, and circles you can also create rectangles on a map.

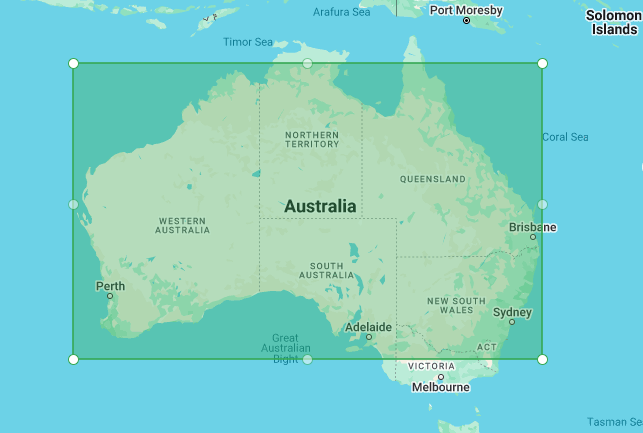

Simple Use (demo)

<template>
  <div style="height: 500px">
    <gm-map>
      <gm-rectangle :bounds="{ east: 145, north: -20, west: 132, south: -27 }" />
    </gm-map>
  </div>
</template>

<script setup lang="ts">
import { gmMap, gmRectangle } from 'v3-gmaps';
</script>

Props

Props	Type	Default	Description
bounds	GmBounds	-	The bounds.
draggable	boolean	false	Whether this Rectangle can be dragged over the map.
editable	boolean	false	Whether this Rectangle can be edited by dragging the control points shown at the corners and on each edge.
visible	boolean	true	Whether this rectangle is visible on the map.
options	google.maps.RectangleOptions	-	Google Maps RectangleOptions interface

Events

Event	Type	Description
bounds_changed	GmBounds	This event is fired when the rectangle's bounds are changed.
click	GmPosition	This event is fired when the DOM click event is fired on the rectangle.
contextmenu	GmPosition	This event is fired when the DOM contextmenu event is fired on the rectangle.
dblclick	GmPosition	This event is fired when the DOM dblclick event is fired on the rectangle.
drag	GmPosition	This event is repeatedly fired while the user drags the Rectangle.
dragend	GmPosition	This event is fired when the user stops dragging the Rectangle.
dragstart	GmPosition	This event is fired when the user starts dragging the Rectangle.
mounted	google.maps.Rectangle	On mounted the component will emit the Google Maps object it represents.
mousedown	GmPosition	This event is fired for a mousedown on the Rectangle.
mousemove	GmPosition	This event is fired for a mousemove on the Rectangle.
mouseout	GmPosition	This event is fired when the mouse leaves the area of the Rectangle.
mouseover	GmPosition	This event is fired when the mouse enters the area of the Rectangle.
mouseup	GmPosition	This event is fired for a mouseup on the Rectangle.
rightclick	GmPosition	This event is fired for a rightclick on the Rectangle.
unmounted	google.maps.Rectangle	On unmounted the component will emit the Google Maps object it represents.
