Marker (gm-marker)

The Marker is the most used component of the library (and Google Maps).

Simple Use (demo)

<template>
  <div style="height: 500px">
    <gm-map>
      <gm-marker :position="{ lat: 0, lng: 0 }" />
    </gm-map>
  </div>
</template>

<script setup lang="ts">
import { gmMap, gmMarker } from 'v3-gmaps';
</script>

Props

Props	Type	Default	Description
clickable	boolean	-	Whether the marker receives mouse and touch events.
draggable	boolean	-	Whether the marker can be dragged.
position	GmPosition	-	Sets the marker position.
title	string	-	Rollover text.
visible	boolean	-	Whether the marker is visible.
zIndex	number	-	Vertical layer to use for this marker.
pin	GmPin	-	Customizes the marker appearance with the pin style.
options	google.maps.marker. AdvancedMarkerElementOptions	-	Google Maps AdvancedMarkerElementOptions interface

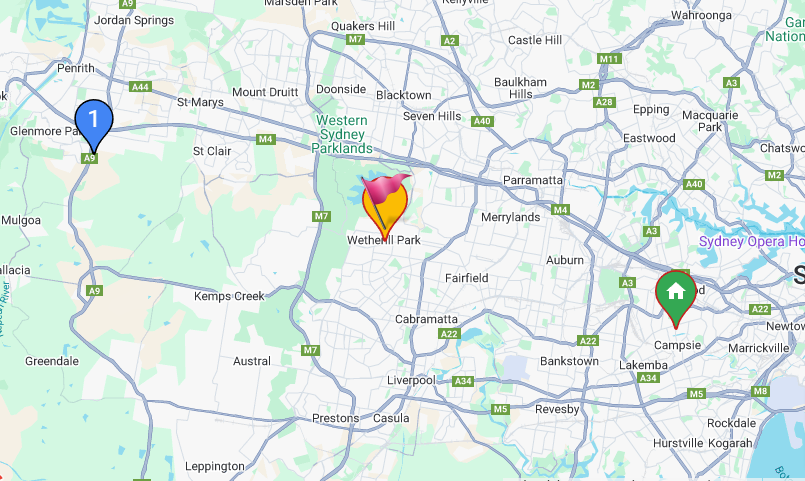

Pin Customization

The pin property allows fully customizing the marker appearance:

<!-- Basic text glyph -->
<gm-marker
  :position="position"
  :pin="{
    background: '#4285F4',
    borderColor: '#000000',
    glyphColor: '#FFFFFF',
    scale: 1.5,
    glyph: 'A'
  }"
/>

<!-- Image glyph -->
<gm-marker
  :position="position"
  :pin="{
    background: '#FBBC04',
    scale: 1.5,
    glyph: imageUrl
  }"
/>

<!-- SVG glyph -->
<gm-marker
  :position="position"
  :pin="{
    background: '#34A853',
    scale: 1.5,
    glyph: '<svg viewBox="0 0 24 24"><path fill="#FFFFFF" d="M12 2C8.13 2 5 5.13 5 9c0 5.25 7 13 7 13s7-7.75 7-13c0-3.87-3.13-7-7-7z"/></svg>'
  }"
/>

Slots

You can create completely custom markers using the default slot:

<gm-marker :position="{ lat: -33.9, lng: 151.1 }">
  <div class="custom-marker-container">
    <img src="/path/to/image.png" alt="Custom marker" />
    <div class="marker-label">My Label</div>
  </div>
</gm-marker>

Events

Event	Type	Description
click	GmPosition	This event is fired when the Marker is clicked.
contextmenu	GmPosition	This event is fired when the DOM contextmenu event is fired on the Marker.
dblclick	GmPosition	This event is fired when the Marker is double clicked.
drag	GmPosition	This event is repeatedly fired while the user drags the Marker.
dragend	GmPosition	This event is fired when the user stops dragging the Marker.
dragstart	GmPosition	This event is fired when the user starts dragging the Marker.
mounted	AdvancedMarkerElement	On mounted the component will emit the Google Maps object it represents.
mousedown	GmPosition	This event is fired for a mousedown on the Marker.
mouseout	GmPosition	This event is fired when the mouse leaves the area of the Marker.
mouseover	GmPosition	This event is fired when the mouse enters the area of the Marker.
mouseup	GmPosition	This event is fired for a mouseup on the Marker.
position_changed	GmPosition	This event is fired when the Marker position property changes.
rightclick	GmPosition	This event is fired for a rightclick on the Marker.
unmounted	AdvancedMarkerElement	On unmounted the component will emit the Google Maps object it represents.

Notes

• gm-marker is based on the Google Maps AdvancedMarkerElement which requires your map to have a valid mapId.
• The mounted and unmounted events return the Google Maps AdvancedMarkerElement object. If you use the @types/google.maps package, it will be typed as google.maps.marker.AdvancedMarkerElement.
